Power BI Financial Dashboard CFO
Power BI Financial Dashboard for CFOs (2026)
1. CFO Dashboard vs Finance Analyst Report — What's Different
The most common mistake when building a Power BI financial dashboard for a CFO is building what a Finance analyst would want to use, then putting it in front of the CFO. These are fundamentally different use cases.
| Dimension | CFO Dashboard | Finance Analyst Report |
|---|---|---|
| Purpose | Answer "are we on track?" in 30 seconds | Investigate why — root cause analysis |
| Screens | 1 page, no scrolling | 3–8 pages with drill-through |
| KPIs shown | 4–6 headline metrics | 20–50 metrics across dimensions |
| Granularity | Company or entity level | GL account, cost center, transaction level |
| Interaction | Filter by period, drill to department | Pivot, variance columns, ad hoc analysis |
| Audience | CFO, CEO, Board | Controller, FP&A Analyst, Finance Manager |
| Refresh cadence | Daily (morning) | Daily or on-demand |
| Device | Mobile, tablet, boardroom screen | Desktop browser |
The right architecture is to build the Finance analyst reports first — Budget vs Actuals, P&L, Forecast vs Actual — and then build the CFO dashboard by pinning KPI tiles from those reports onto a single executive summary canvas. The CFO dashboard does not have its own data model; it surfaces the most important numbers from reports that already exist.
2. The 6 KPIs Every CFO Financial Dashboard Should Include
CFOs use dashboards to monitor six questions. The KPIs below map directly to those questions — and they should appear on the dashboard in roughly this priority order:

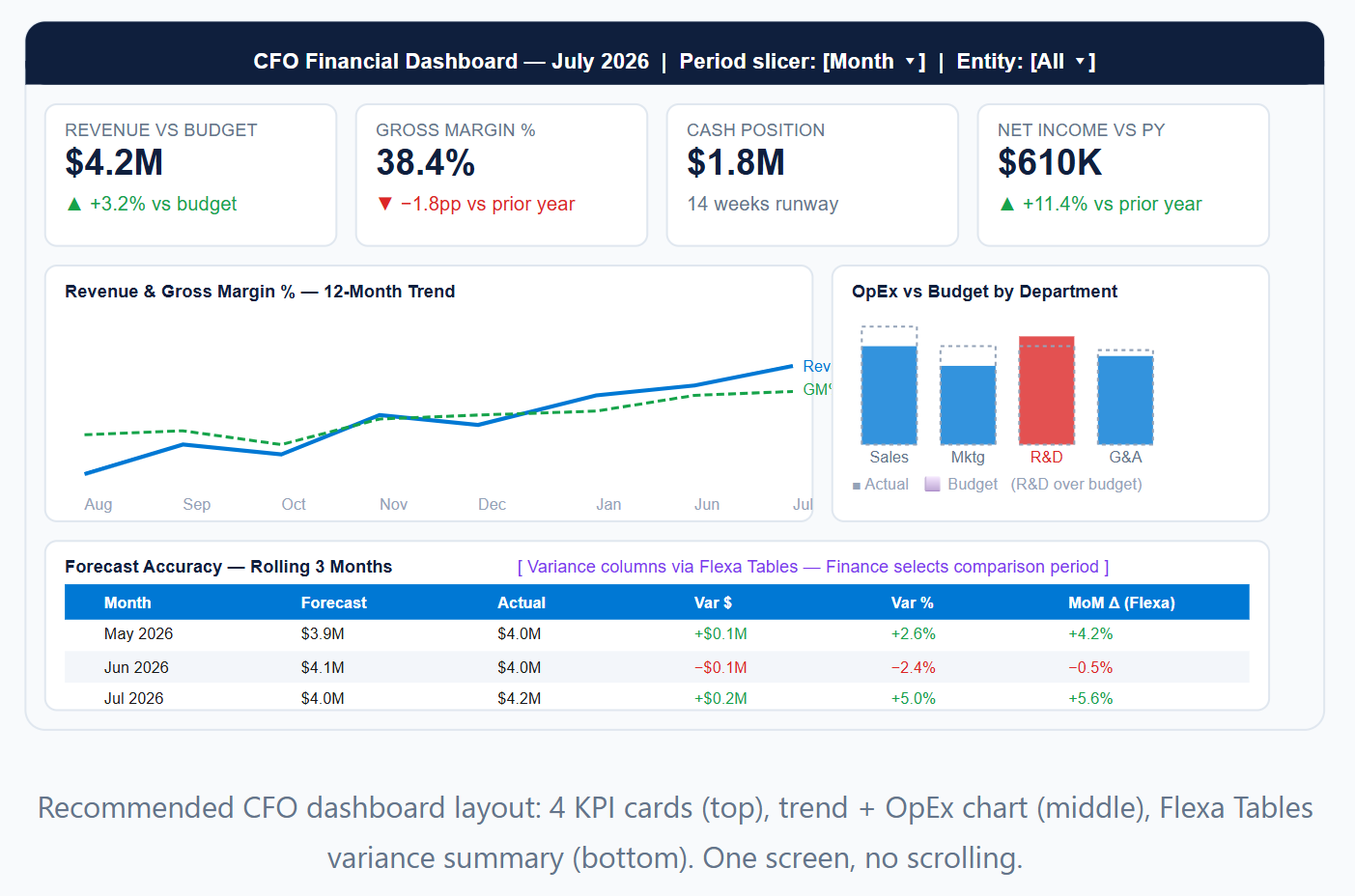

3. Dashboard Layout and Visual Selection
The layout of a CFO financial dashboard is not a design decision — it's an information hierarchy decision. The most important metric goes top-left (where Western eyes land first), the trend context goes middle, and the detailed breakdown goes bottom.
Visual selection for each zone
| Dashboard zone | Recommended visual | Why |
|---|---|---|
| KPI cards (top row) | Power BI KPI visual or Card visual | Largest number on screen — CFO reads this first. Include comparison value and direction arrow. |
| Revenue/margin trend | Line chart (12 months) | Shows direction, not just snapshot. CFOs want to see whether the trend is improving or deteriorating. |
| OpEx by department | Clustered bar chart | Actual vs Budget bars side by side. Conditional formatting: red bar if actual exceeds budget. One click to drill to GL detail. |
| Variance summary table | Flexa Tables | Native Matrix visual locks columns after publishing. Flexa Tables lets Finance adjust MoM/YoY/vs Forecast period without IT. CFO gets the right comparison without submitting a ticket. |
4. Setting Up Variance for CFO-Level Reporting
Variance is the core language of CFO reporting — every metric on a CFO dashboard is meaningful only in comparison to something else: budget, prior year, prior month, or forecast. The challenge in Power BI is that native variance columns require DAX measures that are locked after publishing.
The three variance comparisons CFOs need most
- Actual vs Budget — the primary health check. Is the business performing to plan? Required on every financial KPI.
- Year-over-Year (YoY) — context for whether current performance represents growth or decline vs the prior year. Required for revenue, gross margin, and net income.
- Month-over-Month (MoM) — operational pulse check. Is performance improving or declining sequentially? Required for OpEx tracking and cash position.
DAX approach vs Flexa Tables approach
| Native DAX measures | Flexa Tables (AppSource) | |
|---|---|---|
| Setup | Write a separate DAX measure for each variance type per metric | Install visual from AppSource, add to report — no measures needed |
| Flexibility | Fixed after publishing — new variance type = new DAX measure + republish | Finance/CFO selects comparison period in published report — no IT needed |
| Maintenance | Every new metric doubles the measure count | No additional measures — visual handles all comparisons |
| CFO self-service | None — requires IT for any change | Full — CFO or Finance selects MoM, YoY, Actual vs Budget, Actual vs Forecast |
| Cost | Developer time (ongoing) | $2.99/user/month |
5. Data Model Requirements for a CFO Dashboard
The CFO dashboard does not need its own data model — it should pin tiles from existing Finance reports. But those underlying reports need a data model built correctly for CFO-level variance reporting:
The Scenario column pattern — the most important structural decision
The single most important data model decision for CFO financial reporting is how you separate Actuals, Budget, and Forecast. The recommended pattern is a single fact table with a Scenario column — not separate Actuals and Budget tables.
| Approach | Structure | Variance calculation | Recommended? |
|---|---|---|---|
| Scenario column (recommended) | One FactFinancials table, Scenario column = "Actual" / "Budget" / "Forecast" | CALCULATE([Revenue], Scenario="Actual") − CALCULATE([Revenue], Scenario="Budget") | ✅ Yes — flexible, easy to add new scenarios |
| Separate tables | FactActuals + FactBudget as separate tables | Requires relationship or USERELATIONSHIP — brittle | ⚠️ Avoid — hard to extend, breaks with schema changes |
| Columns per scenario | One table with Actual_Amount and Budget_Amount columns | Simple subtraction — but only works for two scenarios | ⚠️ Only if you'll never add Forecast or Reforecast |
6. Distribution: How CFOs Actually Consume Dashboards
A CFO financial dashboard that only lives in Power BI Service — waiting for the CFO to remember to open it — is a dashboard that won't be used. CFOs consume financial information in three contexts, and your distribution strategy should cover all three:
Context 1 — Daily check (mobile, 7–8 AM)
CFOs who use Power BI dashboards actively typically check them on their phone first thing in the morning. Set up the Power BI mobile app layout separately from the desktop layout — it's a different canvas size and the KPI cards need to be larger. The date slicer should default to the current month so there's nothing to configure before reading the numbers.
Context 2 — Weekly email snapshot
Power BI supports scheduled email subscriptions — a PDF snapshot of the dashboard sent to the CFO every Monday at 7 AM. This is the single highest-adoption distribution method for CFO dashboards. The CFO doesn't need to open Power BI; the numbers come to them. Configure this in Power BI Service under the dashboard's subscription settings.
Context 3 — Board meeting (shared screen)
For board meetings, the CFO typically shares their screen showing the live Power BI dashboard — not a PDF export. Design the dashboard for a 1920×1080 presentation screen. All text should be readable at 2–3 metres. The date slicer should be prominently visible so the CFO can demonstrate filtering by period in real time.
Give your CFO self-service variance — without rebuilding reports
Flexa Tables lets CFOs and their Finance teams add MoM, YoY, and Actual vs Budget variance columns in published Power BI reports — no DAX, no Desktop, no IT tickets. Microsoft-certified, $2.99/user/month, free trial on AppSource.
Get Free Trial on AppSource →FAQ
What should a Power BI financial dashboard for CFOs include?
A CFO financial dashboard in Power BI should include: Revenue vs Budget with variance %, Gross Margin % trend, Operating Expenses vs Budget by department, Cash and liquidity position, and Net Income vs prior year and vs forecast. The layout should fit on one screen with no scrolling — CFOs view dashboards on mobile and in board meetings, not at a desk with time to explore.
How do I build a CFO dashboard in Power BI without complex DAX?
Start with a pre-built PBIX template that includes the core financial measures. Use a Scenario column in your fact table to separate Actuals, Budget, and Forecast rows. For variance columns, use Flexa Tables from AppSource instead of writing DAX — Finance users can add and change variance periods themselves in the published report without IT involvement.
What is the difference between a CFO dashboard and a Finance team report in Power BI?
A CFO dashboard is a single-screen executive summary: 4–6 headline KPIs, traffic-light status, and one-click drill to the next level — designed to answer "are we on track?" in 30 seconds. A Finance analyst report is a multi-page analytical tool for month-end close and FP&A work. Build the Finance reports first, then pin the key metrics to the CFO dashboard.
How often should a CFO Power BI dashboard refresh?
Daily refresh at 6 AM is sufficient for most mid-market CFO dashboards — actuals from the ERP are typically posted daily or overnight. For cash and treasury dashboards where intraday data matters, use DirectQuery mode instead of Import mode. Configure a scheduled email subscription to send the CFO a PDF snapshot every Monday morning.
Can CFOs interact with a Power BI financial dashboard without training?
Yes, if designed correctly. CFOs need three interactions: filter by date period, drill from headline to department, and compare to a benchmark. Use a prominent date slicer, drill-through pages (not drill-down), and Flexa Tables for self-service variance selection. Avoid hidden slicers and complex cross-filter behavior.
What Power BI visuals work best for a CFO financial dashboard?
KPI card for headline numbers, line chart for 12-month trends, clustered bar chart for Actual vs Budget by department, and Flexa Tables for the variance summary table. Avoid pie charts and donut charts — CFOs need precise numbers, not estimated proportions.
