Power BI Guide  ·  Updated July 2026  ·  10 min read  ·  Flexa Intel Team

Power BI Cross-Tab Report: Best Approach (2026)

1. What Is a Cross-Tab Report in Power BI?

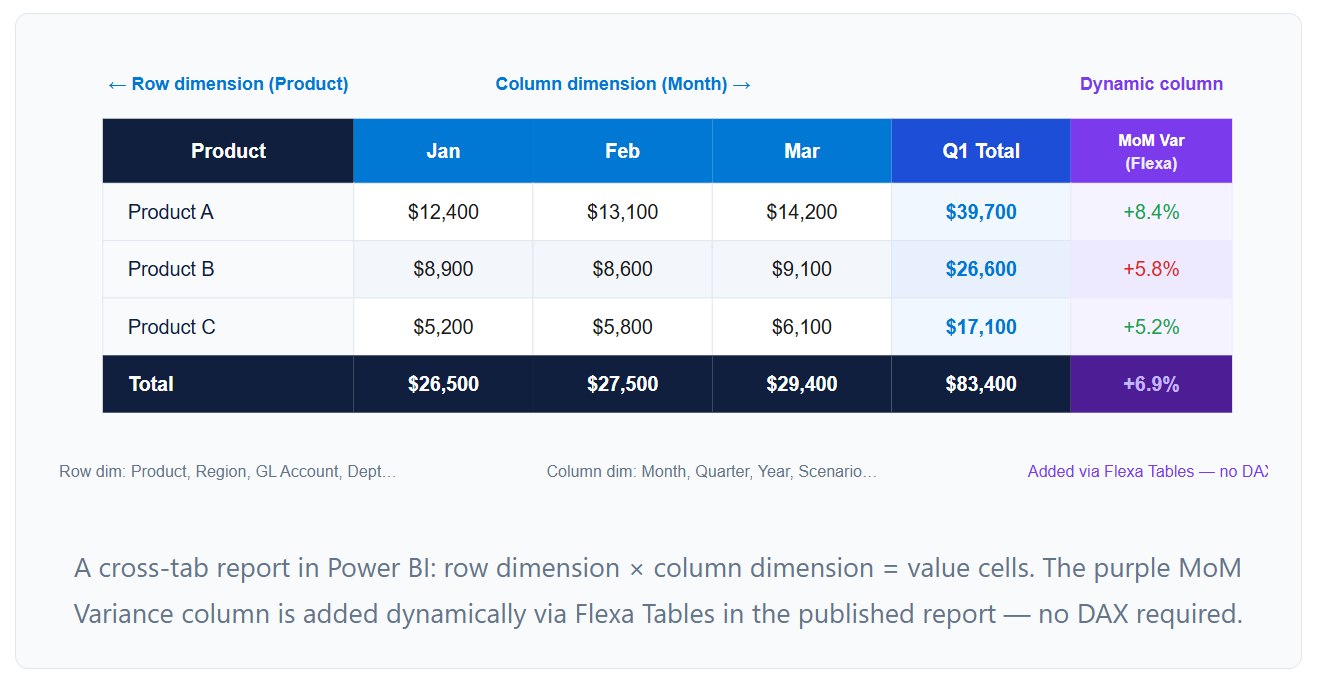

A cross-tab report (short for cross-tabulation) is a table where one dimension forms the rows, another dimension forms the columns, and the intersecting cells contain aggregated values. It is the standard format for financial reporting, sales performance analysis, and any report that compares multiple categories across multiple time periods simultaneously.

In Power BI, the term "cross-tab" is used interchangeably with pivot table and matrix report. All three refer to the same thing: a two-dimensional summary table. The native Power BI visual for this is the Matrix visual, but it has a significant limitation — the layout is locked after publishing. This is where the choice of approach matters.

2. Three Approaches — When to Use Each

3. Approach 1: Matrix Visual (Native Power BI)

The Matrix visual is the right starting point for most cross-tab reports. It handles row and column hierarchies, subtotals, conditional formatting, and drill-through natively.

Setting up a cross-tab with the Matrix visual

1. Add the Matrix visual to your report canvas in Power BI Desktop. Find it in the Visualizations pane — it looks like a grid with row and column headers.
2. Set the row dimension. Drag your category field (Product, GL Account, Department, Region) to the Rows field well. For hierarchical cross-tabs (Category → Subcategory → Item), drag each level in order — the Matrix handles drill-down automatically.
3. Set the column dimension. Drag your time or scenario field (Year-Month, Quarter, Scenario) to the Columns field well. Use a formatted date field (YYYY-MM) to ensure chronological sort order.
4. Add values. Drag your measure (Revenue, Units, Cost) to the Values field well. You can add multiple measures — each appears as a sub-column under each column header.
5. Configure subtotals. In the Format pane → Row subtotals and Column subtotals — toggle on/off and set position (top or bottom for rows, left or right for columns).
6. Apply conditional formatting. Select a value field → Format → Conditional formatting → Background color or Font color. Use rules to highlight variances: red if negative, green if positive.

Matrix visual limitations to know before publishing

4. Approach 2: Power Query Pivot Column

Power Query Pivot is not a visual — it reshapes data at the query level before it reaches the report. Use it when your source data arrives in a format that doesn't match the cross-tab structure you need.

When to use Power Query Pivot

The most common use case is ERP or database exports that use a "tall" format — one row per month per product — when you need a "wide" format with one column per month:

How to pivot columns in Power Query

1. Open Power Query Editor: Home → Transform Data.
2. Select the column whose values will become column headers (e.g. the Month column).
3. Go to Transform → Pivot Column.
4. In the dialog, select the Values Column (the column containing the numbers, e.g. Revenue). Set Aggregate Value Function to Sum.
5. Click OK. Power Query creates one column per unique value in the selected column.
6. Click Close & Apply. The reshaped table is now available in your data model.

5. Approach 3: Flexa Tables (Dynamic Cross-Tab)

Flexa Tables is a Microsoft-certified Power BI custom visual that adds true dynamic cross-tab capabilities to published reports — the capabilities that the native Matrix visual locks away after publishing.

What Flexa Tables adds to a cross-tab that the Matrix visual cannot

• Drag-and-drop row restructuring after publishing — users can switch from Product rows to Region rows to GL Account rows in Power BI Service, without going back to Desktop
• Built-in variance columns — MoM, YoY, YTD, DoD, Actual vs Budget, Actual vs Forecast — selected by the user in the published report, no DAX required
• Dynamic column show/hide — users can add or remove period columns without IT involvement
• Custom period comparison — select any two periods to compare; the variance column appears instantly

Setting up a dynamic cross-tab with Flexa Tables

1. Install Flexa Tables. In Power BI Desktop: Insert → More Visuals → AppSource → search "Flexa Tables" → Add. Free trial, no credit card needed.
2. Add Flexa Tables to your report canvas and resize to full page width.
3. Configure the visual. Drag your row dimension to Rows, your date/period field to Columns, and your measure to Values — same as the Matrix visual.
4. Publish to Power BI Service. No changes to the data model required.
5. In the published report, Finance users can: add variance columns (click the + column button → select MoM, YoY, or custom period), reorder columns, switch row dimensions, and save their view.

6. Adding Dynamic Columns to a Cross-Tab

The most common cross-tab request after publishing is "can you add a column for last month's comparison?" In native Power BI, this requires a DAX measure and a republish. Here are the options:

Option A — Field Parameters (native, requires Desktop)

Field Parameters (introduced in Power BI 2022) let users switch between measures using a slicer. They do not add columns dynamically — they switch between predefined columns. Setup:

-- In Power BI Desktop: Modeling → New Parameter → Fields
-- Select the measures to include in the parameter
-- A slicer is added to the report automatically

Limitation: users can only switch between measures you defined upfront. Adding a new measure type still requires Desktop and republish.

Option B — Calculation Groups (DAX, advanced)

Calculation Groups apply DAX expressions across multiple measures simultaneously — useful for toggling between MoM, YoY, and YTD across all measures at once. This is the correct DAX approach for dynamic time intelligence in cross-tabs, but requires:

• Tabular Editor or DAX Studio (external tool)
• Significant DAX knowledge
• Testing across all measures in the model
• Republish after any change

Option C — Flexa Tables (no DAX, no Desktop, recommended)

Flexa Tables handles dynamic variance columns without any of the above. Finance users select the comparison type (MoM, YoY, Actual vs Budget) directly in the published report. No DAX, no Desktop, no IT ticket.

7. Common Cross-Tab Problems and Fixes

Problem: Blank cells in the cross-tab

Blank cells appear when there is no data for a row/column combination, or when a measure returns BLANK() instead of zero. Fix:

-- Replace BLANK with zero in your measure:
Revenue = IF(ISBLANK(SUM(Sales[Amount])), 0, SUM(Sales[Amount]))

Problem: Months appear in alphabetical order, not calendar order

This happens when the Month field is text. Fix: add a Month Number column (1–12) to your date table and set it as the Sort By Column for Month Name in Power BI Desktop (Column Tools → Sort By Column).

Problem: Cross-tab shows too many columns and becomes unreadable

Add a relative date filter to the Matrix visual: Visual filters → Date field → Relative date → "is in the last 12 months." This limits columns to the most recent 12 months without changing the data model.

Problem: Row totals are incorrect (double-counting)

This is almost always caused by a measure that uses SUM on a calculated column that already aggregates. Fix: use a base fact column in your measure (SUM(Sales[UnitPrice] * Sales[Quantity])) rather than summing a calculated column.

Problem: Finance users keep requesting new column configurations

This is not a bug — it is the fundamental limitation of the Matrix visual. The architectural fix is to add Flexa Tables to the report, which gives Finance users self-service control over column configuration without IT involvement.

FAQ

What is the best way to create a cross-tab report in Power BI?

For a fixed cross-tab that users filter with slicers, the native Matrix visual is the right choice. For a cross-tab where end users need to restructure rows and columns or add variance columns (MoM, YoY) after publishing without IT involvement, Flexa Tables is the better option. Power Query Pivot is used for reshaping source data at the model level — it is not an interactive visual.

What is the difference between a cross-tab report and a pivot table in Power BI?

In Power BI, cross-tab reports and pivot tables refer to the same concept: a table where one dimension forms the rows, another forms the columns, and the intersections contain aggregated values. The Matrix visual is the native equivalent of both. The key difference from Excel: Power BI's Matrix locks the layout after publishing, while Excel pivot tables allow drag-and-drop restructuring. Flexa Tables restores this drag-and-drop behavior in published Power BI reports.

Can you add dynamic columns to a Power BI cross-tab without DAX?

Not with the native Matrix visual — dynamic columns require DAX measures or field parameters plus a Desktop republish. Flexa Tables is the exception: it adds dynamic columns including MoM, YoY, YTD, and custom period variance directly in the published report without any DAX.

How do I transpose rows to columns in Power BI for a cross-tab?

Use Power Query's Pivot Column feature: open Power Query Editor → select the column whose values will become column headers → Transform → Pivot Column → select the Values Column → OK. For dynamic transposing after publishing, Flexa Tables lets users swap rows and columns in Power BI Service without Desktop.

Why does my Power BI cross-tab show blank cells?

Blank cells are caused by missing data, filter context issues, or a measure returning BLANK() instead of zero. Wrap your measure with IF(ISBLANK([Base Measure]), 0, [Base Measure]) to show zero instead of blank. For filter context issues, use Performance Analyzer in Power BI Desktop to see which filters are active on the visual.

How do I create a cross-tab report with month columns in Power BI?

Place your date dimension in the Matrix Columns field well using Year-Month format (YYYY-MM) for chronological sorting. Put your row dimension in Rows and your measure in Values. To add MoM variance as an additional column, use Flexa Tables — it adds MoM columns in the published report without DAX measures.
